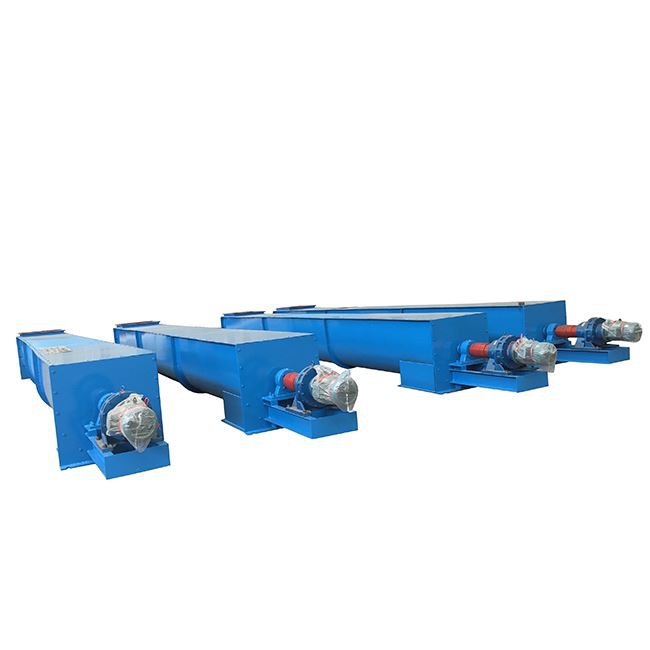

Product Overview: Why Choose U-Trough (LS)?
While tubular conveyors are good for sealing, LS U-Trough Conveyors are the king of maintenance.
Imagine a rock gets stuck inside a pipe conveyor-you have to dismantle the whole machine. With the LS Series, you simply unbolt the top cover, remove the obstruction, and you are back running in 10 minutes. This makes it ideal for materials that are abrasive, lumpy, or prone to blocking.
Typical Applications
This carbon steel workhorse is widely used in industries that don't require food-grade hygiene but demand durability:
- Boiler Systems: Removing bottom ash and slag.
- Mining & Quarrying: Transporting sand, gravel, and crushed ore.
- Waste Treatment: Moving dewatered sludge (the open trough prevents vacuum lock).
- Feed Mills: Distributing grain or corn to multiple bins (using multiple discharge outlets).
The "10 Ton Capacity" Configuration
The URL mentions 10 Ton/h. Here is the standard configuration for this popular capacity:
- Model: LS-200 (200mm Diameter).
- Speed: 60 - 90 RPM (Slow speed to reduce wear).
- Motor: 3.0 kW or 4.0 kW.
- Throughput:
- For Heavy Sand (1.6 t/m³): ~15 Tons/h.
- For Light Grain (0.75 t/m³): ~7-8 Tons/h.
- Average Mix: 10 Tons/hr.

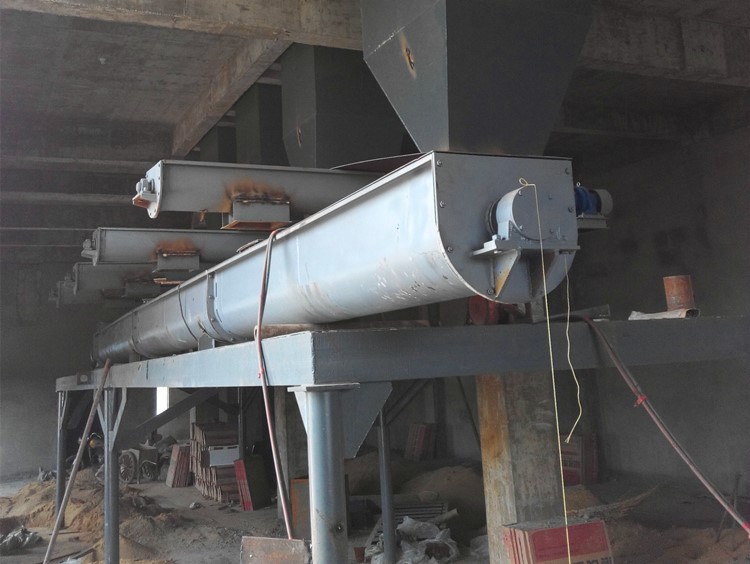

| Client's worksite: |  |
| Dlivery: |
|
Structure & Features
- Removable Covers: Supplied with dust-tight flat covers. Secured with quick-release clamps or bolts.
- Hanger Bearings: The critical component. We use Cast Iron or Copper-based hanger bearings that resist abrasion. (Self-lubricating options available).
- Discharge Flexibility: Unlike pipes, the U-trough can have discharge gates anywhere along the bottom length, allowing you to feed multiple silos with one conveyor.
Technical Specifications (LS Series Range)
We offer sizes from LS-160 up to LS-630.
| Model | Screw Dia. (mm) | Speed (rpm) | Capacity (t/h)* | Max Lump Size (mm) |
| LS-200 | 200 | 90 | 10 - 15 | 20 |
| LS-250 | 250 | 90 | 20 - 30 | 30 |
| LS-315 | 315 | 75 | 40 - 50 | 40 |
| LS-400 | 400 | 75 | 70 - 90 | 50 |
Maintenance Tips
- Watch the Hanger Bearing: This is the only part inside the material flow. Listen for squeaking noises. Replace the bushing before it wears into the shaft.
- Don't Start Full: Always empty the trough before shutting down. Starting a screw conveyor filled with heavy sand can burn the motor.
FAQ
Q: Can it be installed at an angle?
A: Yes, but efficiency drops. U-trough conveyors work best horizontally or at a low angle (< 20°). For steep angles (> 30°), please use our Tubular Screw Conveyor.
Q: How long does the screw flight last?
A: For standard materials, 2-3 years. For abrasive sand, we can add Hard-Facing welding on the flight edge to extend life.
