Product Introduction

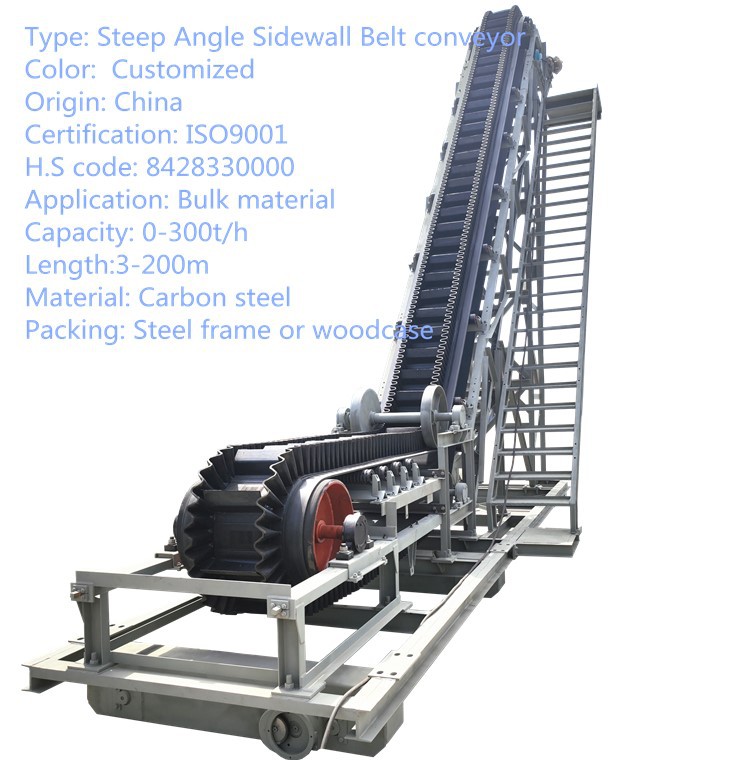

When horizontal space is limited, the Large Angle Sidewall Belt Conveyor is the answer. By using corrugated sidewalls and transverse cleats, it locks material in place for vertical or steep lifting. This single-unit design can replace a series of horizontal conveyors, saving up to 75% of floor space.
Technical Specifications
| Technical Feature | High-Angle Model Specifications |
| Lifting Angle | 30° - 90° (Steep to Vertical) |
| Belt Base Type | High-Tensile EP / Steel Cord Cross-Stabilized |
| Cleat Height | 40mm - 360mm (T / TS / TC Types) |
| Max Capacity | Up to 1500 t/h (Customizable) |
| Material Range | Coal, Ores, Aggregates, RDF, Grain, etc. |
| Frame Type | Heavy-duty Open Truss or Channel Steel |
Regional Adaptability - Belt & Road
- South America/Central Asia Mining: Designed for heavy-load ore lifting in deep pits.
- EPC Projects: Fully compliant with ISO and Chinese EPC engineering standards.
Industry Applications
- Mining & Metallurgy: Lifting crushed ore and coal from underground or deep pits.
- Power & Energy: Feeding coal or alternative fuels (RDF) to high-altitude bunkers.
- Chemical & Cement: Transporting raw materials to the top of silos or processing towers.
Manufacturing Capability & Project Experience
Henan Kunwei Machinery Co., Ltd. has extensive experience in designing belt conveyor systems for complex material characteristics. Our alternative fuel conveying solutions are developed based on real operating data, site layout constraints, and long-term maintenance considerations.
Customers have successfully implemented this large-angle conveyor to replace multiple inclined conveyors, achieving simplified layouts, improved fuel stability, and reduced maintenance frequency.
