The "Airlock" Function: Why It Matters
If you are discharging fly ash or cement from a silo, you can't just open a hole. The pressure difference would blow dust everywhere.
Our Impeller Feeder acts as a dynamic seal.
- Precision Machining: The gap between the rotor blades and the cast iron housing is minimized to < 0.15mm.
- The Result: Material falls down, but air cannot blow up. This is essential for Negative Pressure systems (like baghouses) or Positive Pressure pneumatic conveying lines.

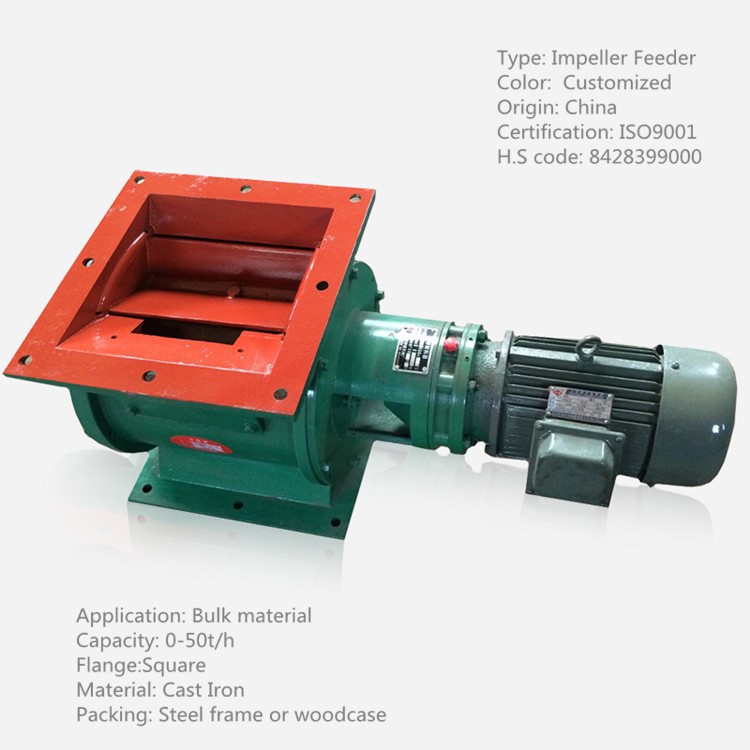

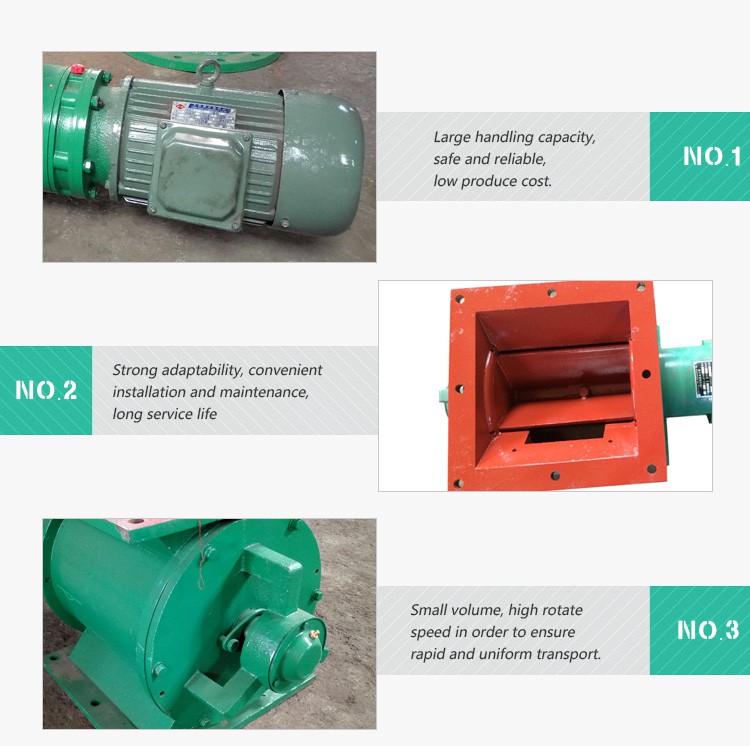

Heavy-Duty Cast Iron Construction
We don't use thin sheet metal. We use High-Grade Cast Iron (HT200) for both the housing and the rotor.
- Wear Resistance: Cast iron withstands the abrasion of dry powders better than mild steel.
- Rigidity: The heavy casing won't deform under the weight of the silo or vibration from the motor, ensuring the rotor never scrapes the wall.
- Standard Flanges: Available in Square (Type A) or Round (Type B) flanges to fit any hopper.
Typical Applications
- Dust Collection: Discharge valve for the bottom of Bag Filters and Electrostatic Precipitators.
- Pneumatic Conveying: Feeding powder into the blow line (Positive pressure).
- Cement & Grain: Controlling the flow rate of cement, flour, or starch from storage bins.
- Ash Handling: Handling fly ash in thermal power plants.
Technical Specifications (YJD Series)
Commonly used models for dust collection systems.
| Model | Flange Size (mm) | Capacity (L/rev) | Capacity (m³/h)* | Motor Power (kW) |
| YJD-02 (2L) | 200 x 200 | 2 | 2 - 4 | 0.55 / 0.75 |
| YJD-06 (6L) | 300 x 300 | 6 | 6 - 10 | 1.1 |
| YJD-10 (10L) | 300 x 300 | 10 | 12 - 18 | 1.1 / 1.5 |
| YJD-16 (16L) | 400 x 400 | 16 | 20 - 30 | 1.5 / 2.2 |
| YJD-26 (26L) | 500 x 500 | 26 | 40 - 55 | 2.2 / 3.0 |
Customization Options
- High Temperature: For handling hot ash (> 200°C), we separate the motor from the valve body and use high-temp bearings.
- Rotor Tips: We can add Rubber or PU tips to the blades for better sealing with fine powders, or Hardened Steel tips for abrasive materials.
- Motor Type: Standard Direct Drive, Chain Drive (for shock absorption), or VFD controlled.
FAQ
Q: Square flange or Round flange?
A: We supply both. The Square Flange (Type A) is most common for dust collectors. The Round Flange (Type B) is common for silos. Please confirm your opening shape when ordering.
Q: Does it jam with large particles?
A: This feeder is designed for powders and small granules. If your material contains large lumps or rocks, please tell us. We will modify the rotor with a "Shear Angle" to prevent jamming.
