Introduction

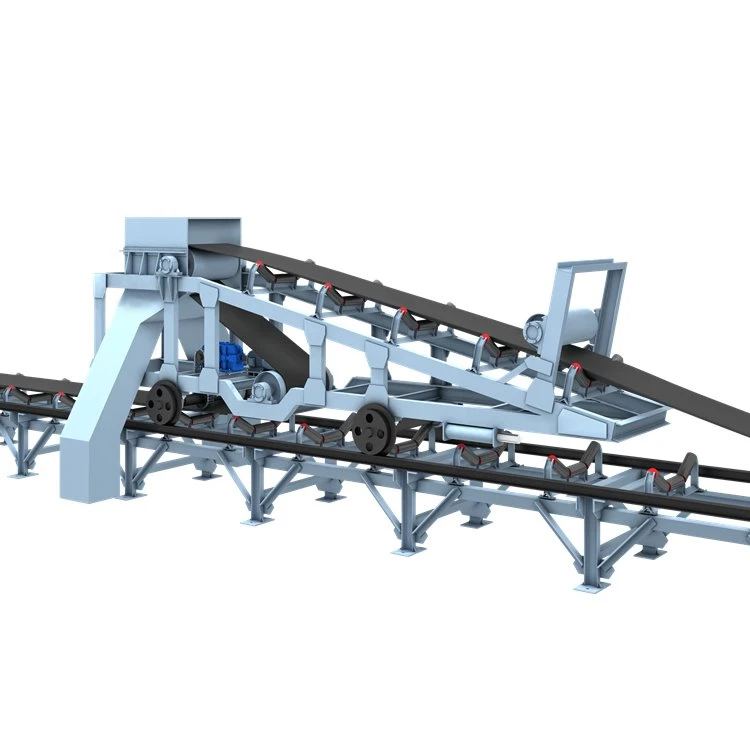

Travelling belt tripper is a kind of unloading device, which can unload at any point in the horizontal section of the conveyor, which is convenient for the overall distribution. Due to the steel rail, the travelling belt tripper can be easily moved and can be discharged on both sides or unloaded on one side. According to the need, it can be designed into three-way (middle and two sides, but can not be discharged at the same time on both sides), two-way (two sides or middle and single side) and single side discharge. Matching with the main belt conveyor is divided into TD75 and DTIIA unloading trucks.
Application
The Travelling belt tripper is used to unload the materials transported by the TD75 and DTII series belt conveyors to any point in the middle of the conveyor, and use the site to accumulate materials or distribute materials in the maximum range. The travelling belt tripper has the characteristics of compact and reasonable structure, reliable use, long service life, convenient maintenance and low maintenance cost. The travelling belt tripper is widely used in mining, power, metallurgy, coal, port, building materials and other industries.
Working Principle
The travelling belt tripper is driven by the motor on the car through the speed reducer and chain to make the trolley move back and forth on the guide rail of the conveyor frame. The material transported by the conveyor reaches the position of the trolley and falls into the unloading funnel of the trolley, thus To achieve the purpose of unloading at any point in the middle of the conveyor.
|
Model |
B500 |
B650 |
B800 |
B1000 |
B1200 |
B1400 |
|
Outlet |
Single/Double |
|||||
