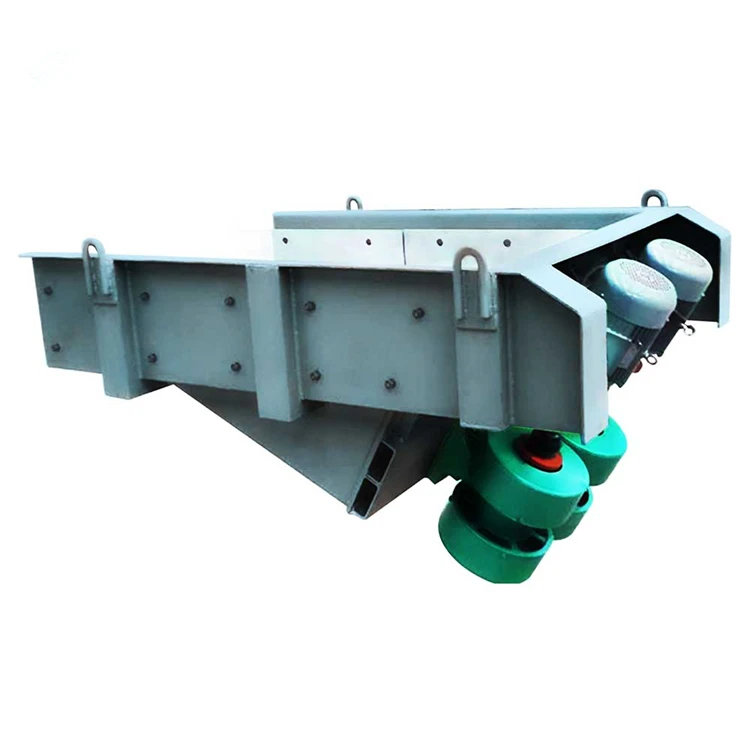

Product Overview: The Heavyweight Champion
When dealing with primary crushing or large tonnage transfer, suspension feeders are too fragile. You need the Fixed Motor Feeder.

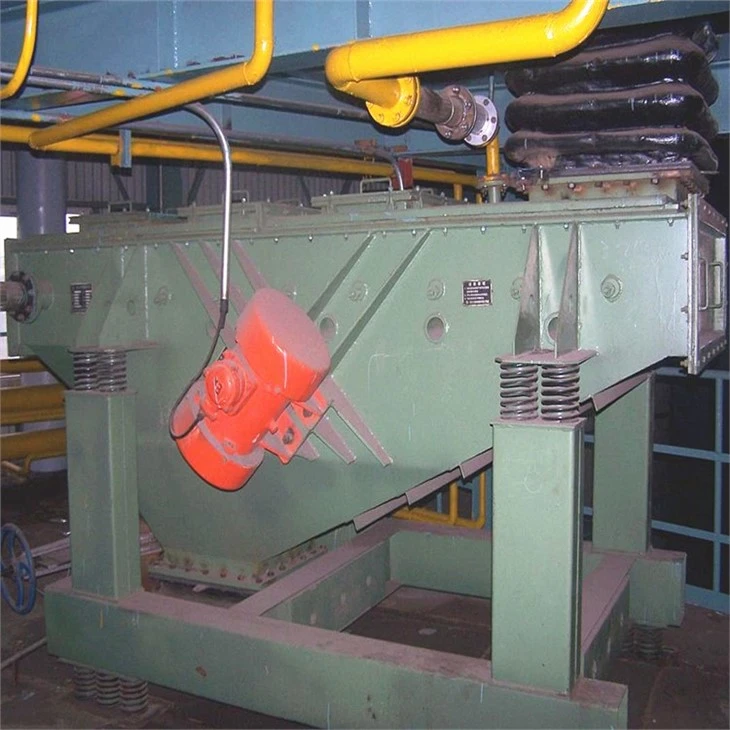

- Why "Fixed" (Floor Mounted)? It sits on a concrete foundation or steel skid with heavy-duty compression springs. This provides maximum stability to withstand the impact of large rocks (up to 500mm-1000mm) falling from dump trucks or loaders.
- Drive Principle: Twin Vibration Motors self-synchronize to generate a linear force. It's brute force engineering-simple and reliable.
Comparison: Fixed (Motor) vs. Suspension (Electromagnetic)
| Feature | Fixed Feeder (This Model) | Suspension Feeder (GZ) |
| Installation | Floor / Seat Mounted | Hanging / Suspended |
| Material | Large Rocks, Ore, Coal | Small Granules, Powder |
| Capacity | High (Up to 600 t/h) | Low to Medium |
| Adjustment | Adjust Motor Weights (Mechanical) | Adjust Controller Knob (Electrical) |
Structure & Durability
- Grizzly Bars (Optional): We can install Grizzly Bars at the discharge end to pre-screen dirt and fines before the rock enters the crusher. This increases crusher efficiency.
- Wear Liners: The trough is lined with NM400 Wear Plates or Manganese Steel to resist abrasion from sliding rocks.
- Springs: Uses heavy-duty rubber or steel coil compression springs to absorb shock loads.
Technical Specifications
- Model: ZSW (Grizzly Type) / GZG (Standard).
- Max Feed Size: 300mm to 800mm.
- Motor Power: 2 x 1.5kW up to 2 x 30kW.
- Mounting Angle: Typically installed at a 10° downward slope to aid flow.

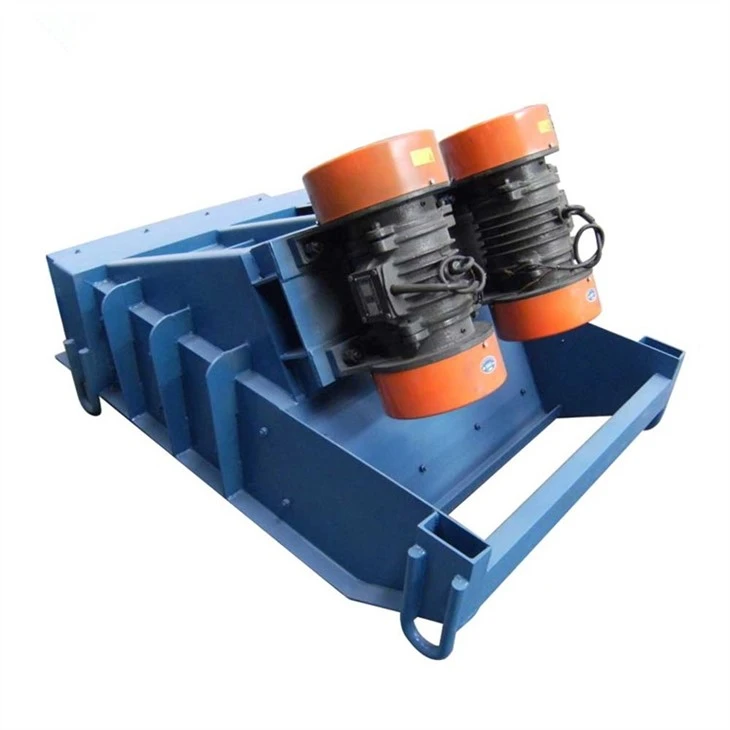

The motor vibrating feeder is designed to handle various types of materials, including bulk materials, granular materials, and powders. It is capable of feeding materials evenly and continuously, with a high degree of accuracy and efficiency. The motor vibrating feeder is typically constructed of durable materials and can be customized to meet specific application requirements.
In summary, the motor vibrating feeder is a reliable and efficient feeding solution that utilizes motor-driven vibrations to move materials along a trough or tray. It is widely used in various industries and can handle a range of materials with ease.
|
Model |
Feeding Size (mm) |
Processing Capacity (t/h) |
Model of Vibrating Motor |
Power (kW) |
RPM (r/min) |
Double Amplitude (mm) |
Vibrating Force (N) |
|
ZG-25 |
60 |
25 |
YZO-2.5-4 |
0.25x2 |
1500 |
2-3 |
5000 |
|
ZG-30 |
60 |
30 |
YZO-2.5-4 |
0.25x2 |
1500 |
2-3 |
5000 |
|
ZG-60 |
90 |
60 |
YZO-5-4 |
0.4x2 |
1500 |
2-4 |
10000 |
|
ZG-80 |
160 |
80 |
YZO-5-4 |
0.4x2 |
1500 |
2-4 |
10000 |
|
ZG-100 |
210 |
100 |
YZO-8-4 |
0.75x2 |
1500 |
2-5 |
16000 |
|
ZG-200 |
270 |
200 |
YZO-8-4 |
0.75x2 |
1500 |
2-5 |
16000 |
|
ZG-300 |
300 |
300 |
YZO-17-4 |
0.75x2 |
1500 |
2-5 |
34000 |
|
ZG-400 |
300 |
400 |
YZO-17-4 |
0.75x2 |
1500 |
3-5 |
34000 |
|
ZG-500 |
300 |
500 |
YZO-17-4 |
0.75x2 |
1500 |
3-5 |
34000 |
|
ZG-750 |
400 |
750 |
YZO-30-6 |
2.5x2 |
1000 |
4-6 |
60000 |
|
ZG-1200 |
400 |
1200 |
YZO-30-6 |
2.5x2 |
1000 |
4-6 |
60000 |
|
ZG-1800 |
420 |
1800 |
YZO-75-6 |
5.5x2 |
1000 |
5-8 |
150000 |
|
ZG-2000 |
420 |
2000 |
YZO-75-6 |
5.5x2 |
1000 |
5-8 |
150000 |
Typical Applications
- Quarry: Feeding the primary Jaw Crusher.
- Coal Mine: Transferring coal from the receiving hopper to the washing plant.
- Sand Plant: Moving wet river sand (motor feeders handle wet material better than electromagnetic ones).
📋 Selection Guide: Is this the right feeder for you?
The GZD/ZSW Series is designed for heavy-duty base mounting and primary crushing (handling large rocks).
If your project requires:
- Precise Dosing (0-100% stepless flow control)
- Hanging Installation (to save floor space under silos)
- Handling Fine Powders or small granules
Please switch to our specialized model: 👉 GZ Series Suspension Vibratory Feeder
